Chiller for Nano Aquariums up to 20 Gallons

• Compressor-Free Thermo Electric Chiller
• Extremely Quiet, Energy Efficient Operation
• Compact Form Factor: Just 7.1" x 3.9" x 10.2"
• For Freshwater or Saltwater Aquariums

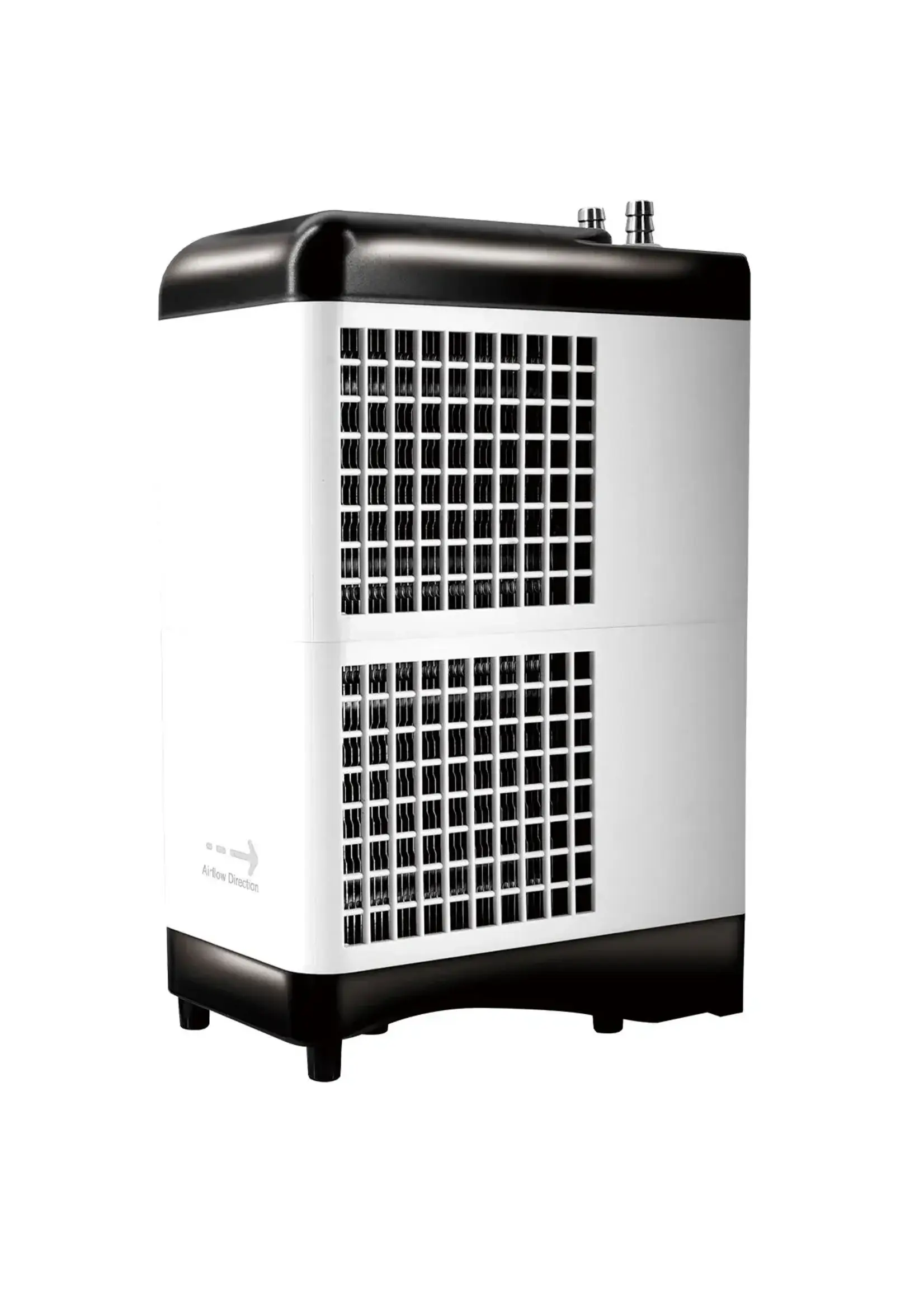

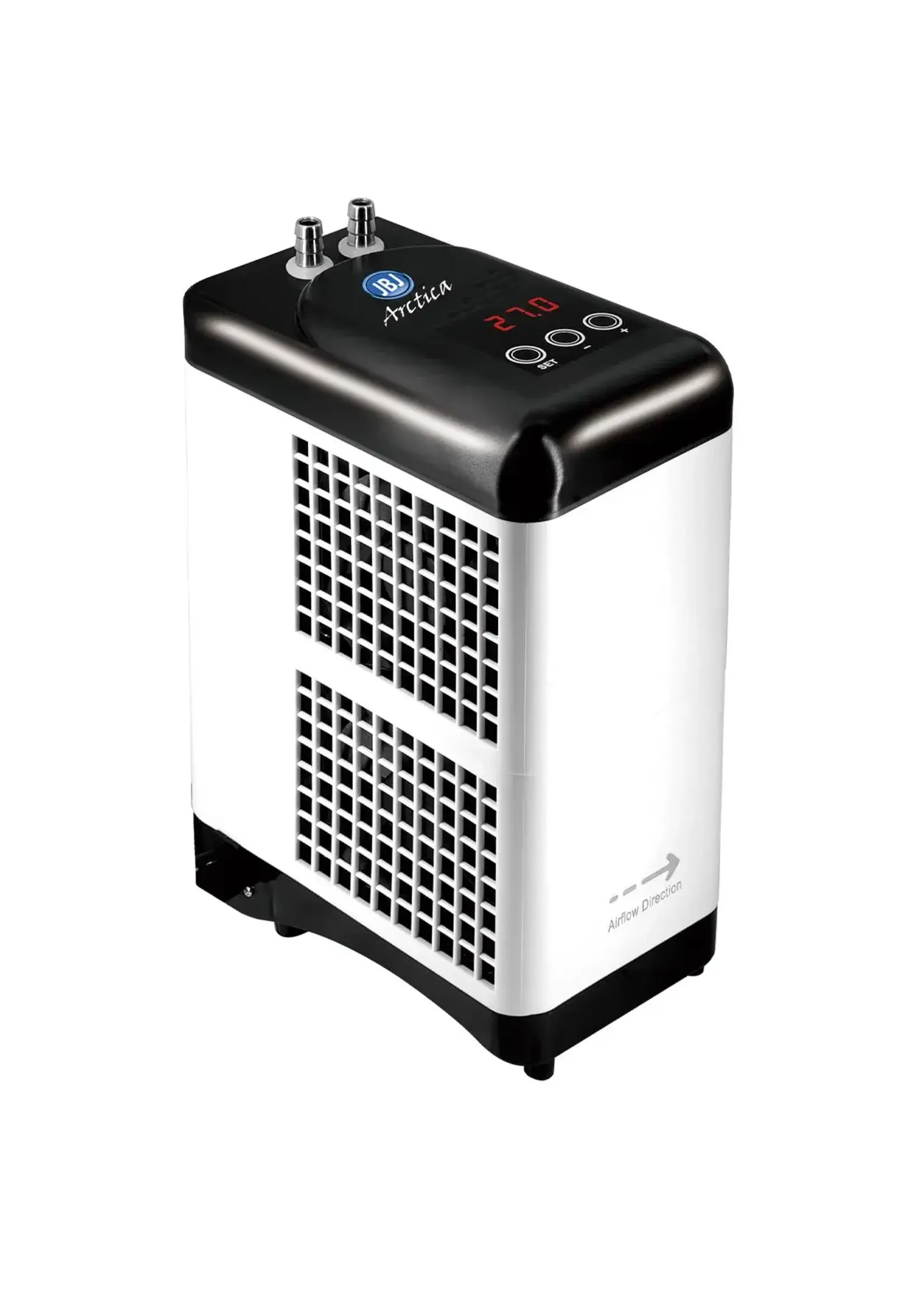

The JBJ Nano Arctica E-Chillers are different from traditional compressor-based chillers. Instead of a compressor, the thermo electric design utilizes a large heat sink and fan to cool the water. It's capable of lowering the aquarium water temperature by up to 9-11°F, depending on the ambient room temperature. This model is the perfect cooling solution for most aquariums up to 20 gallons.

Installation Tips

The chiller should be placed on the same level as the aquarium, if possible. If you need to place the chiller below the aquarium, you'll likely need to use a more powerful pump to supply the correct amount of water flow to the chiller. Insufficient flow may result in poor cooling performance or freezing inside the cooling unit.

• Place the pump at least 1/2" above the substrate
• Use the suction cup on the outlet pipe
• Point the outlet pipe in the opposite direction of the pump

Specifications

• Recommended Tank Size: Up to 20 Gallons
• Cooling Capacity: 9-10°F
• Temperature Control Range: 60-94°F
• Dimensions: 7.1" x 3.9" x 10.2"
• Max Head Height: 36"
• Max GPH: 118 GPH
• Input Power: DC 12v/10A
• Pump Wattage: 7W

What's Included?

Main Cooling Unit

Temperature Sensor

Power Supply

Adjustable Flow Knob

Water Hose Connector

12mm Tubing

Suction Cup

Pump

L-Pipe
