The Red Sea REEF-FRAME line blends years of hobbyist feedback with precision engineering and forward-thinking design. Built as an ultimate blank canvas, these systems feature eurobraced ultra-clear glass, hydrodynamically superior piping, high-precision flow control, and marine-spec fortified cabinets.

Available as a Standard version for full equipment customization, or a MAX version equipped with a full ecosystem of ReefBeat smart devices, REEF-FRAME provides a rock-solid, quiet foundation so you can build a stunning, long-lasting aquatic masterpiece.

Core System Features & Innovations

• Eurobraced Ultra-Clear Glass: Engineered with glass thickness up to 15 mm (0.59”), high-grade eurobracing for superior structural integrity, and bonded with high-performance euro-silicone.
• Extra-Fortified Cabinets: Built from marine-spec laminated plywood to support the full contour of the display tank. Includes stainless steel hinges, leveling feet, and cabinet finishes in Black, White, or Classic Oak.

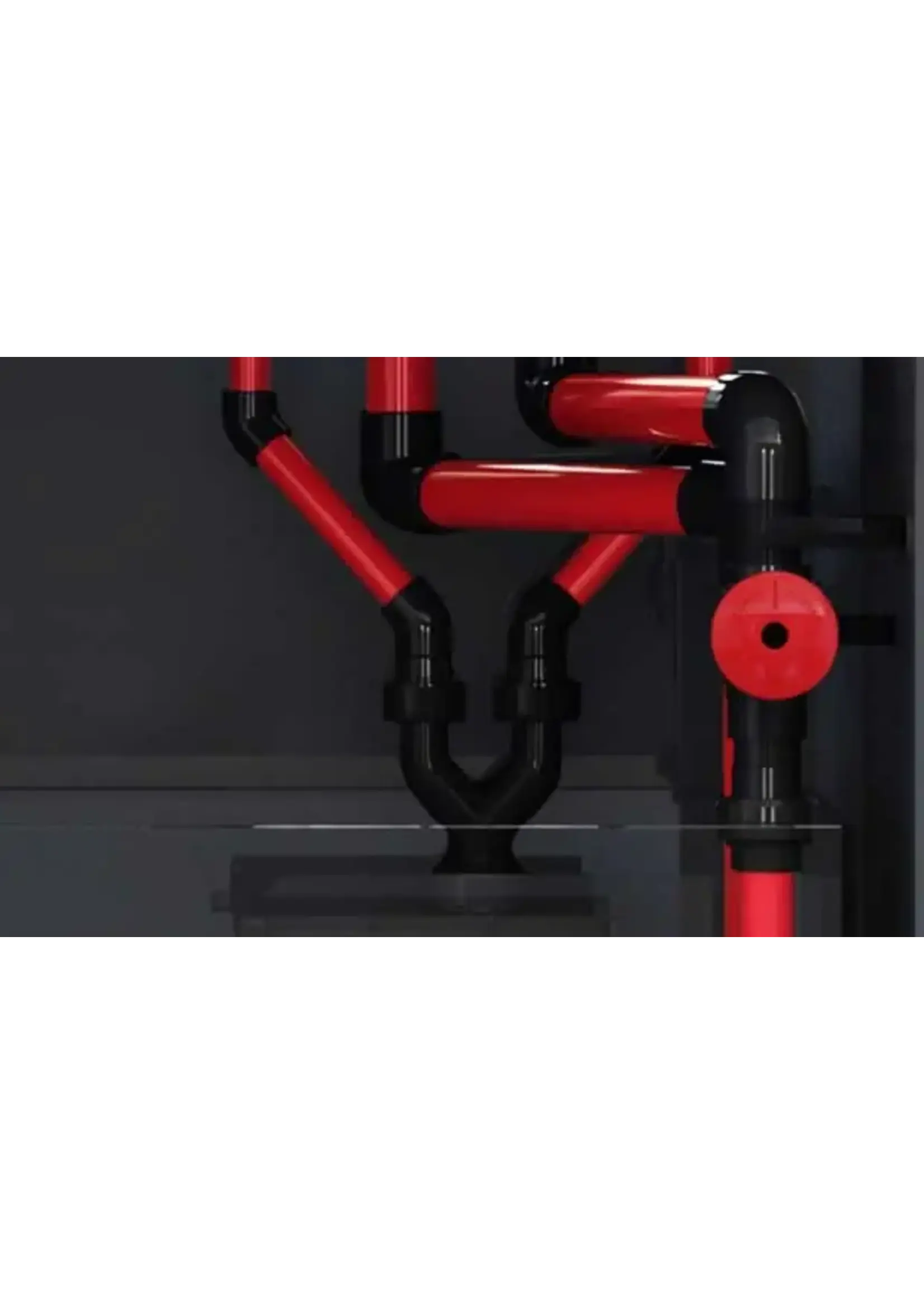

• High-Precision ReefGate Valve: A bespoke, heavy-duty gate valve installed on the downflow pipe that allows micro-adjustments for near-silent overflow operation.

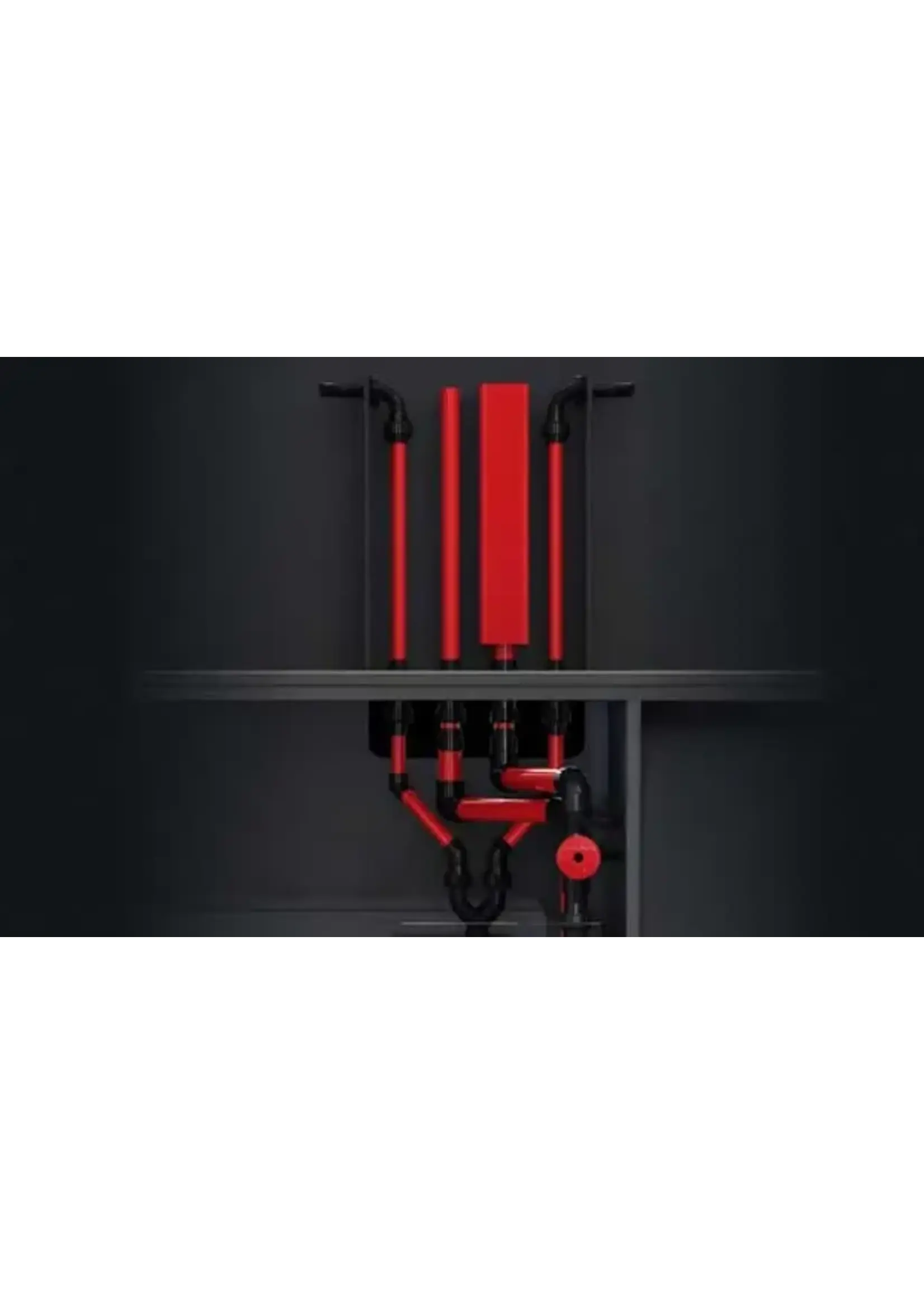

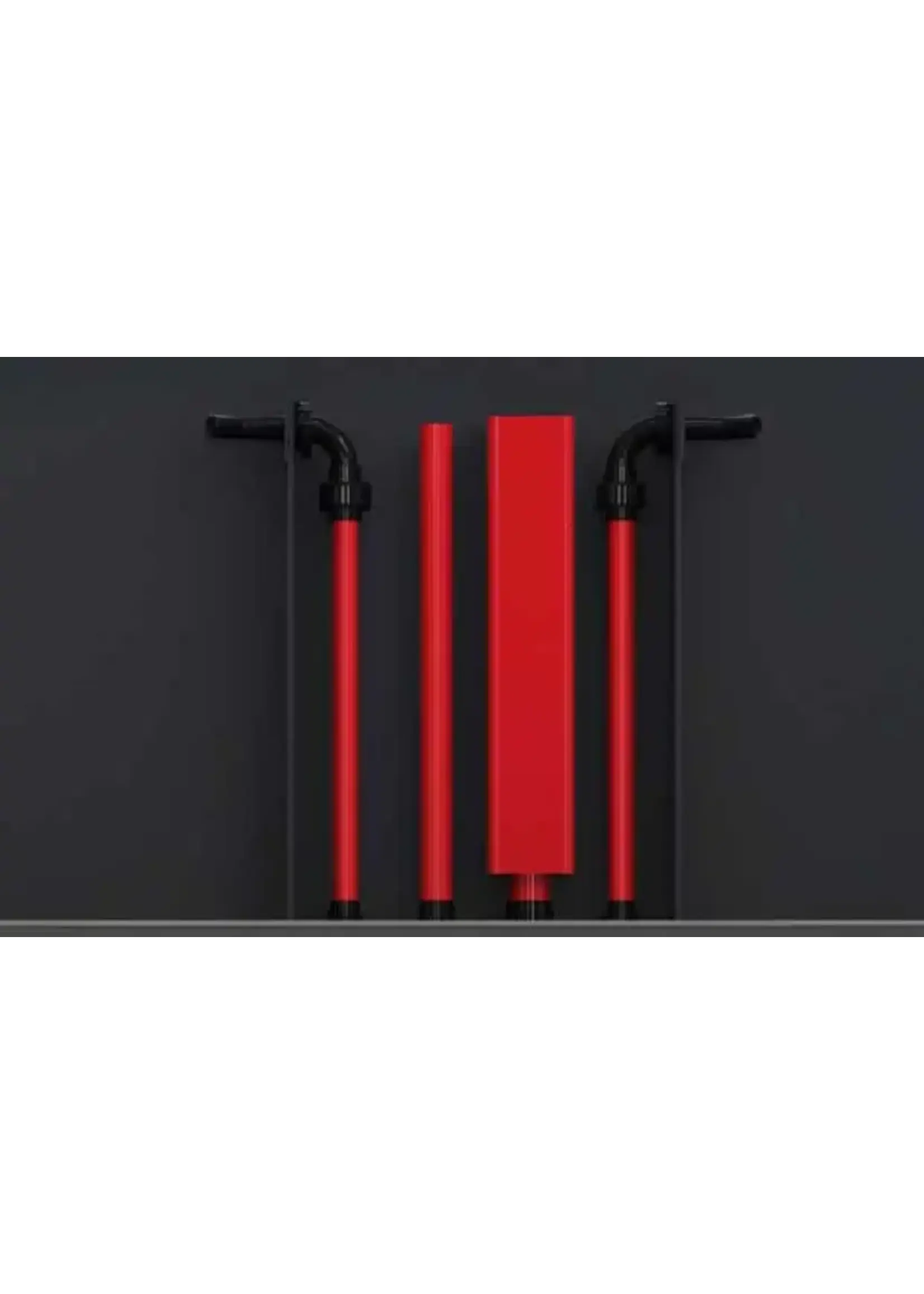

• Hydrodynamically Superior Piping: Enlarged rectangular-profile downflow pipes maximize circulation and eliminate noise. Includes optional connector kits for both Metric and USA standard pipe customization.

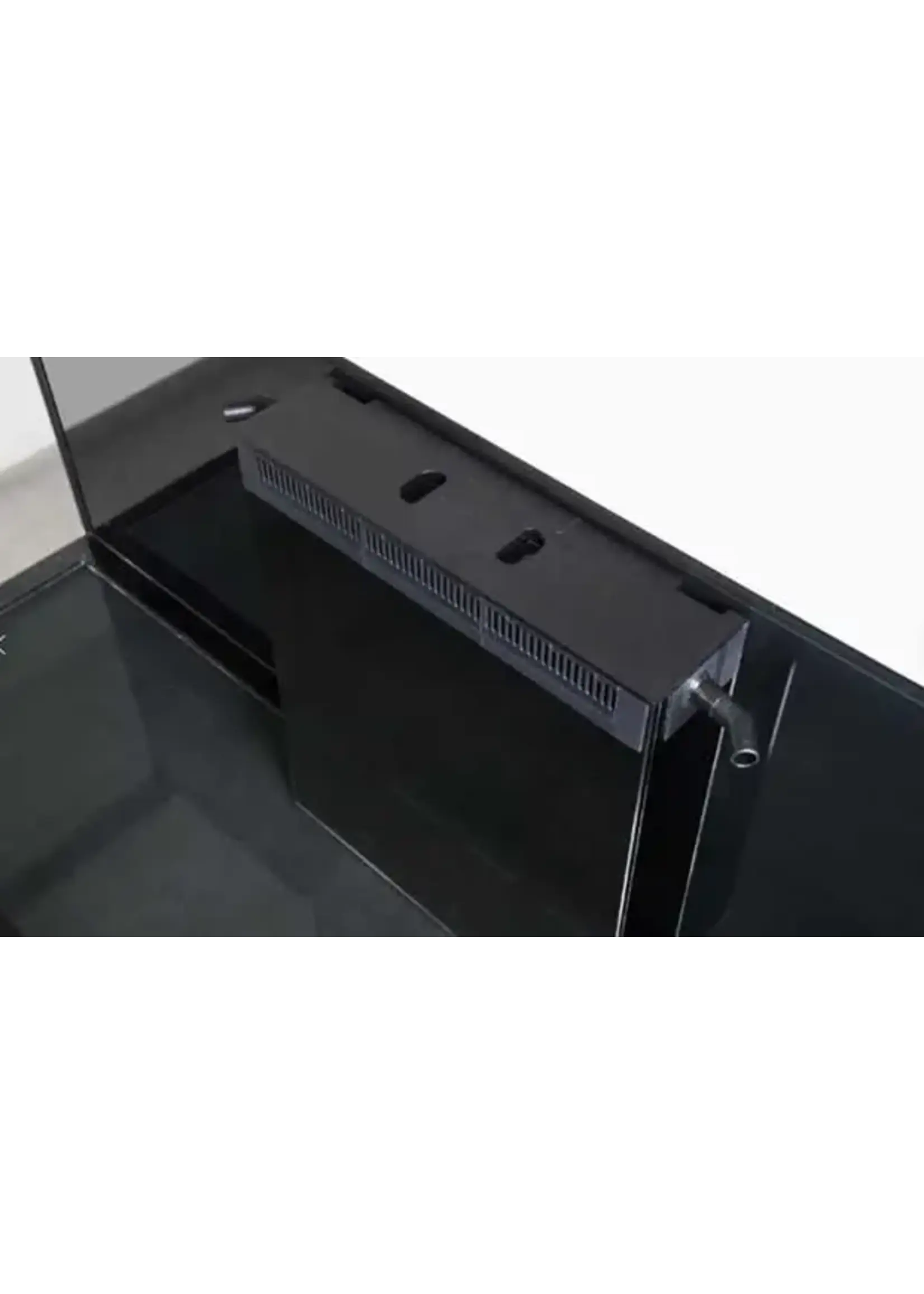

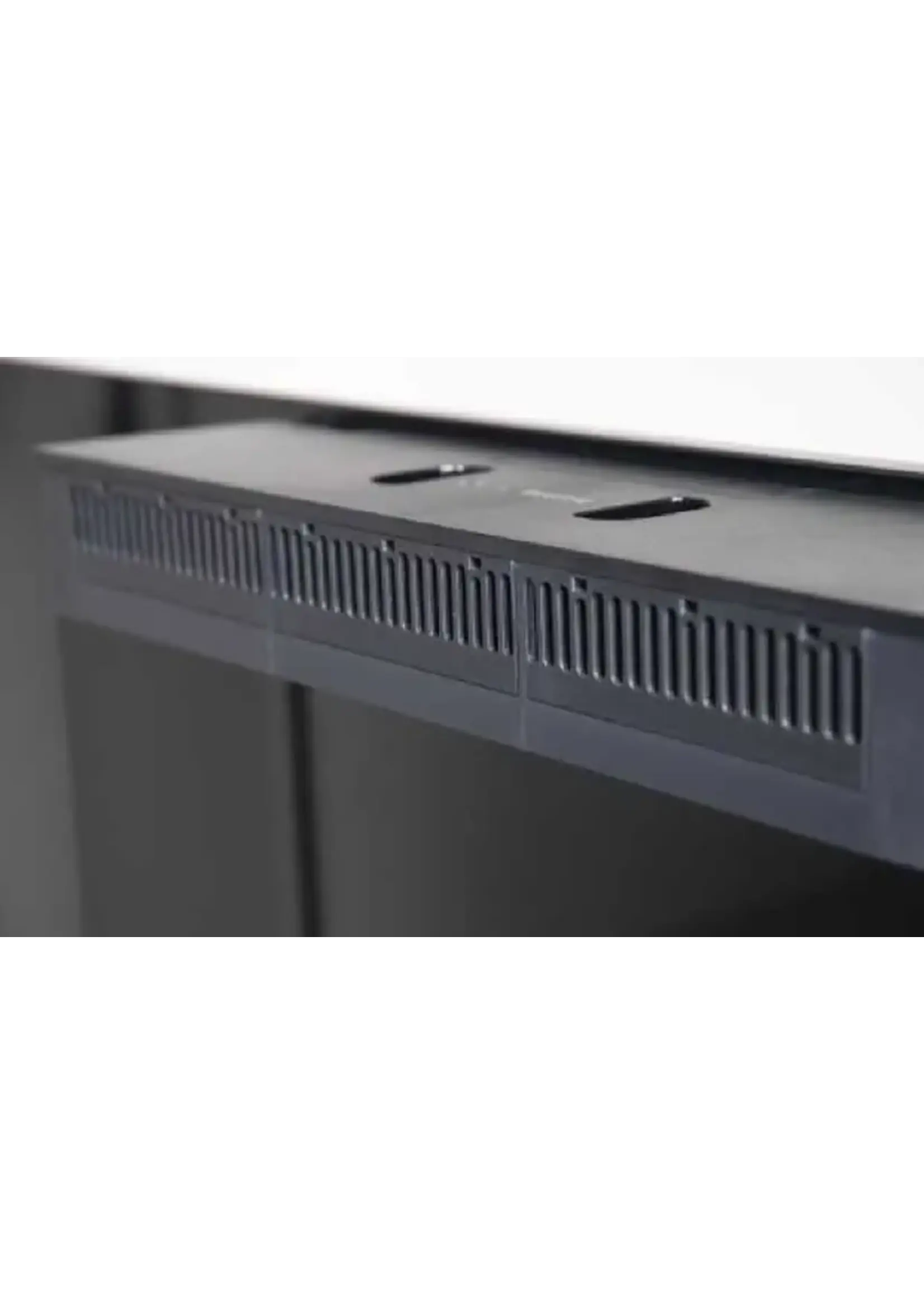

• Central Overflow & Surface Skimmer: Conceals all return and drain plumbing within a sleek overflow box featuring removable surface skimming combs for quick maintenance.

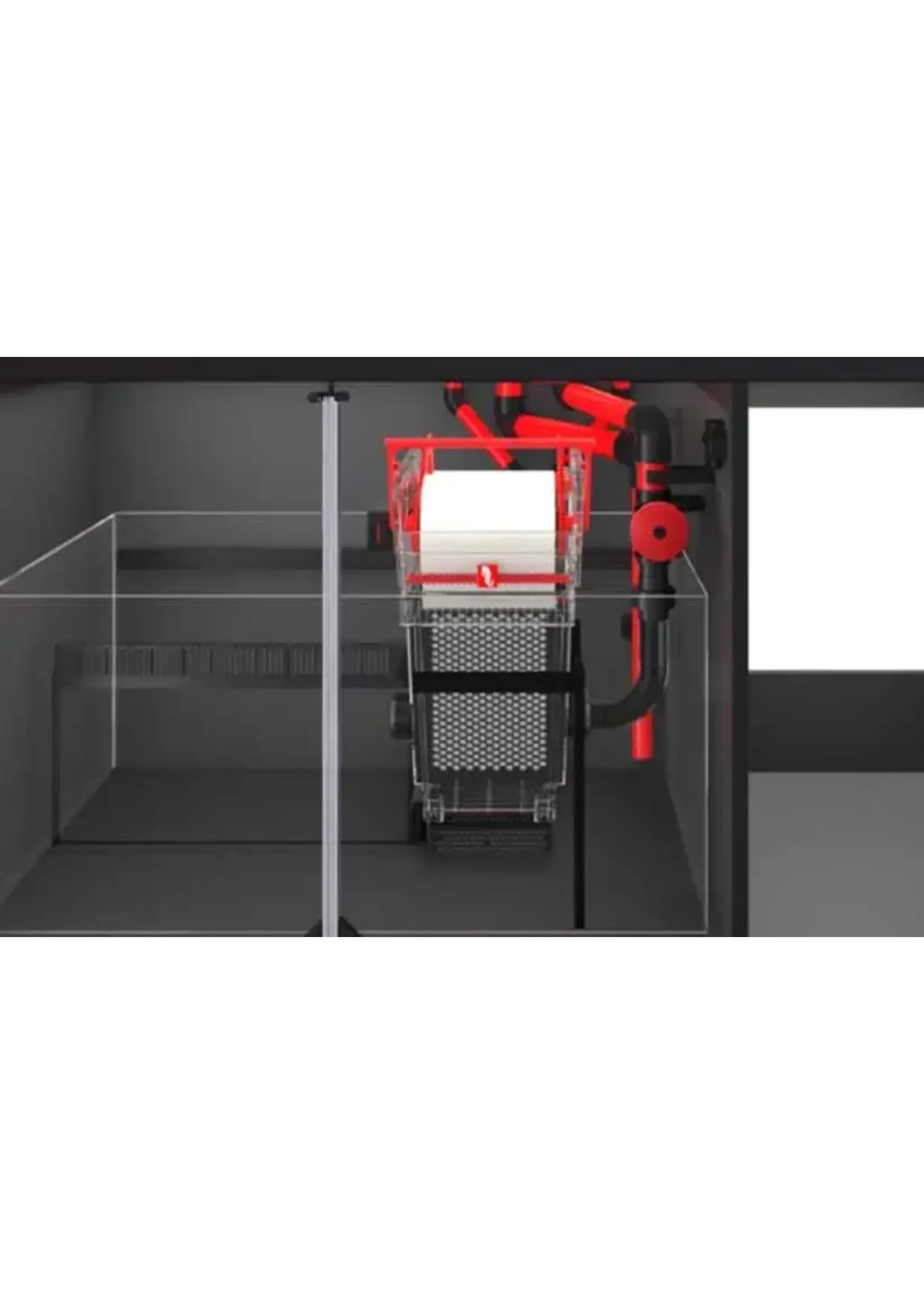

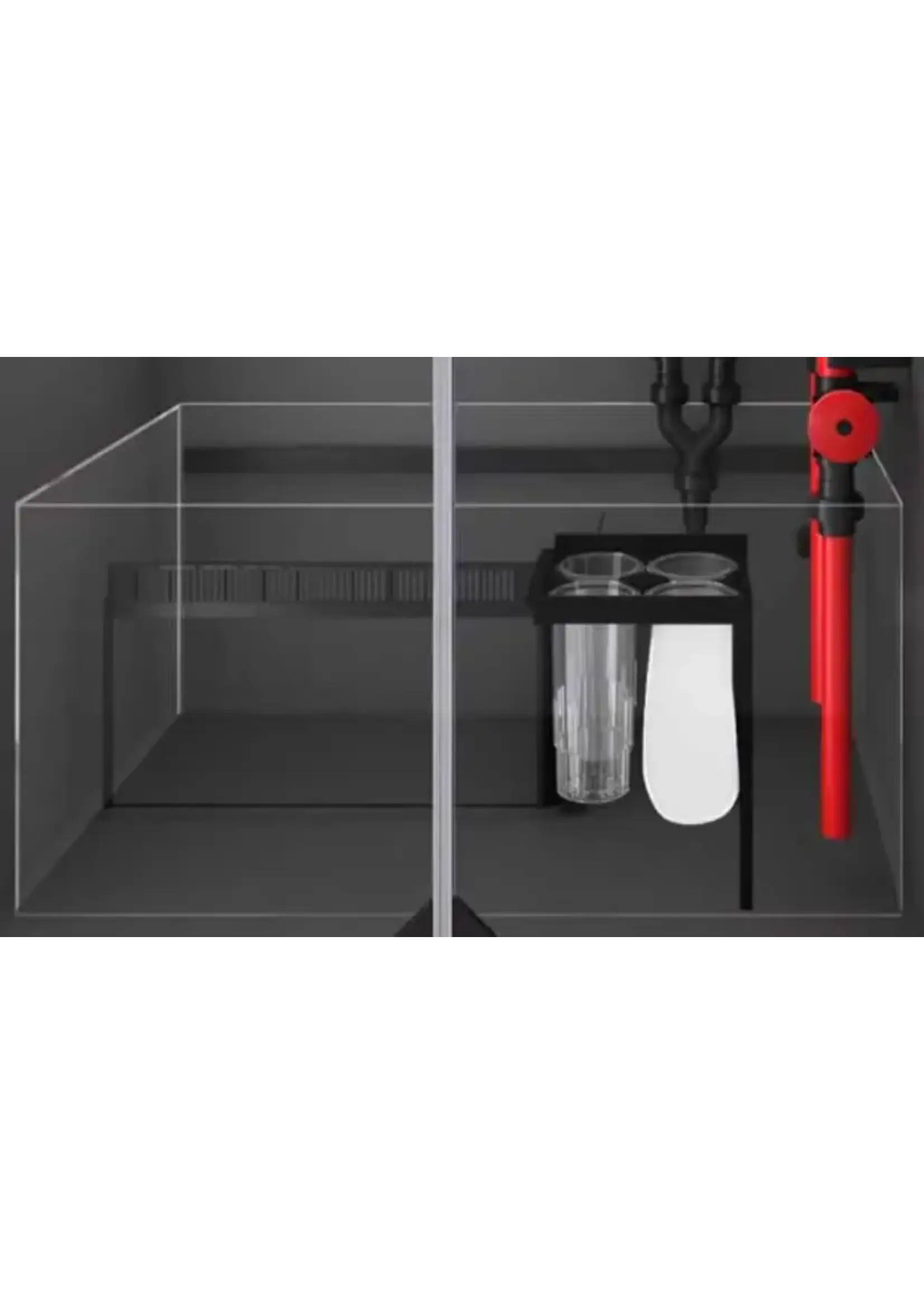

• High-Performance REEF SPEC Sump: Includes a dedicated skimmer chamber with adjustable water height, a built-in bubble trap to prevent microbubbles in the display, and a plug-and-play ReefMat-ready mechanical filtration bay (fits ReefMat 250/500/1200, filter socks, and media cups).

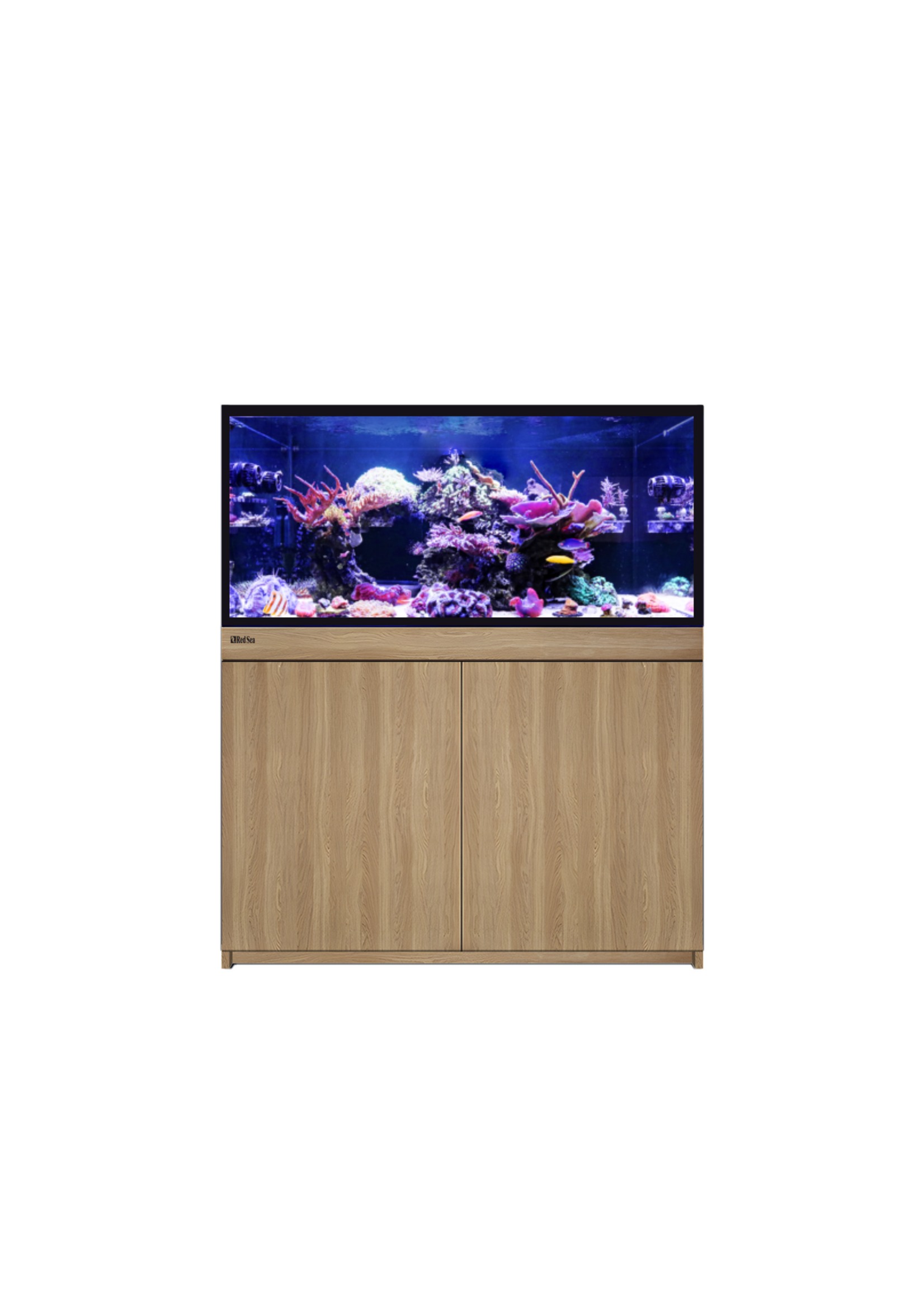

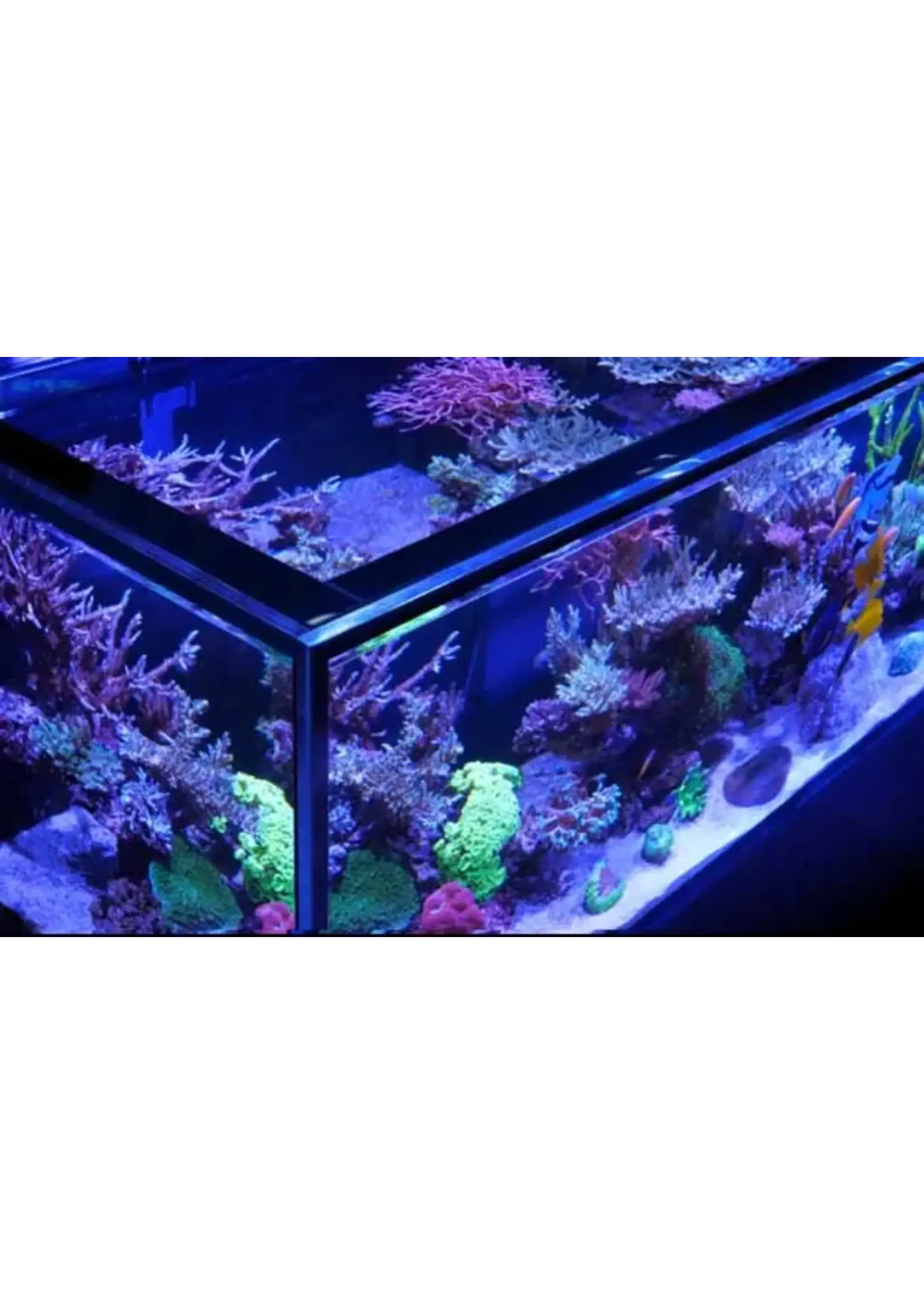

Red Sea REEF-FRAME 350 (93.4 Gal / 353 L System)

Overview

Spanning 47.2 inches, the Red Sea REEF-FRAME 350 provides an expansive 4-foot canvas for intricate rock structures and heavy coral growth. It steps up the plumbing capability with dual return outlets, making it suitable for high-turnover marine ecosystems.

Key Highlights

• Dual Return Outlet System: Dual 25mm outlets allow you to run either a high-power single return pump or a redundant dual return pump system for added safety.
• Heavy-Duty Construction: Upgraded side glass thickness of 15 mm (0.59″) with perimeter eurobracing supports high hydraulic pressure.
• Expanded Reef Spec Sump: Features 18.8 gallons of sump space, providing room for high-capacity skimmers, media reactors, and a ReefMat 500/1200 roller filter.

Technical Specifications

• Total System Volume: 93.4 gal (353 L)
• Display Tank Volume: 74.6 gal (282 L)
• Sump Volume: 18.8 gal (71 L)
• Display Dimensions (L × W × H): 47.2″ × 21.6″ × 20.9″ (120 cm × 55 cm × 53 cm)
• Total System Height: 53.9″ (137 cm)
• Glass Thickness: Front: 12 mm (0.47″) | Sides: 15 mm (0.59″) | Bottom: 12 mm (0.47″)
• Pump Return Outlets: 2x 25mm curved outlets (Single or dual pump compatible)
• Refugium Chamber: Yes (Includes optional sump divider)
