The Red Sea REEF-FRAME MAX series takes the ultra-durable, eurobraced foundation of the standard REEF-FRAME line and elevates it into a fully integrated, Plug & Play smart reef system.

Instead of sourcing individual components, every REEF-FRAME MAX comes pre-equipped with Red Sea’s full suite of ReefBeat app-controlled hardware—including ReefLED G2 lighting, ReefWave gyre pumps, ReefRun DC return pumps, REEFER DC Skimmers, ReefMat automatic roller filters, and the ReefATO+ top-off system.

What’s Included in the REEF-FRAME MAX Ecosystem?

Every REEF-FRAME MAX system connects seamlessly through the Red Sea ReefBeat App for centralized monitoring, scheduling, and notifications:

• ReefLED G2 Smart Lighting: Equipped with custom mounting arms. Offers REEF-SPEC spectrum tuned for maximum coral color and growth, a 23,000K blue channel, UV/violet LED arrays, and dedicated 3W moonlight.
• ReefWave Gyre Circulation Pumps: Cross-flow technology delivering uniform, customizable water movement with silent sine-wave motor operation.
• ReefRun DC Variable Speed Return Pump & Controller: Whisper-quiet, energy-efficient circulation with app-controlled flow rates, feed modes, and safety alerts.
• REEFER DC Skimmer: Self-leveling smart skimmer featuring PSK DC pump technology, high-precision foam sensor, and automated neck cleaning alerts to eliminate skim-over.
• ReefMat Automatic Fleece Roller: Plug & Play fleece roller filter replacing traditional filter socks for crystal-clear water with automated roll tracking.
• ReefControl Pro
• ReefATO+ System: 3-in-1 auto top-off system featuring solid-state water level sensors, digital temperature monitoring, and an external leak detector.

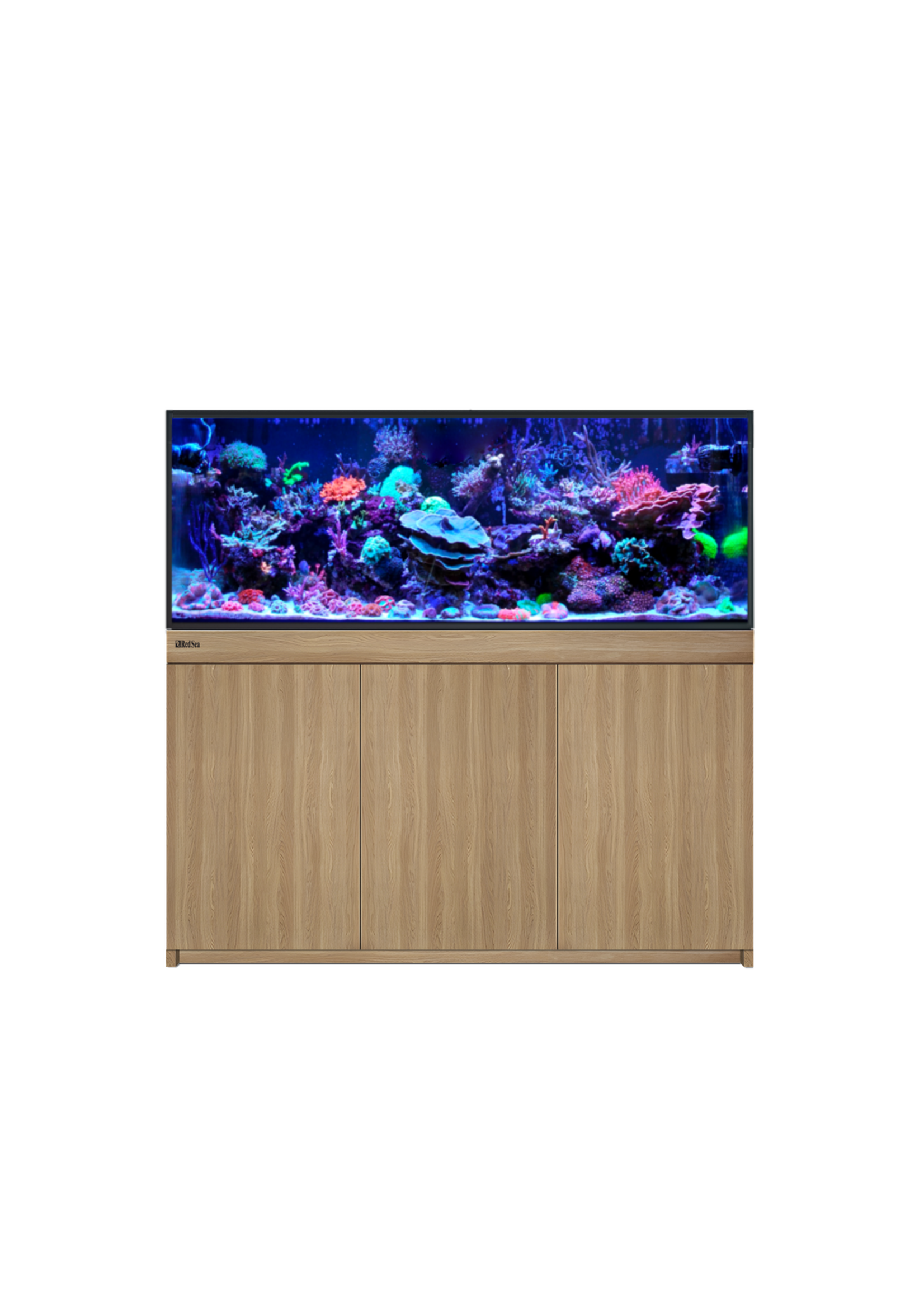

Red Sea REEF-FRAME MAX 500 (136.3 Gal / 516 L System)

Overview

The flagship Red Sea REEF-FRAME MAX 500 is built for large, high-demand marine aquariums. Featuring a massive 107-gallon display built with full 15mm ultra-clear eurobraced glass, this setup delivers high-volume filtration, multi-light coverage, high-capacity gyre circulation, and full smart control right out of the box.

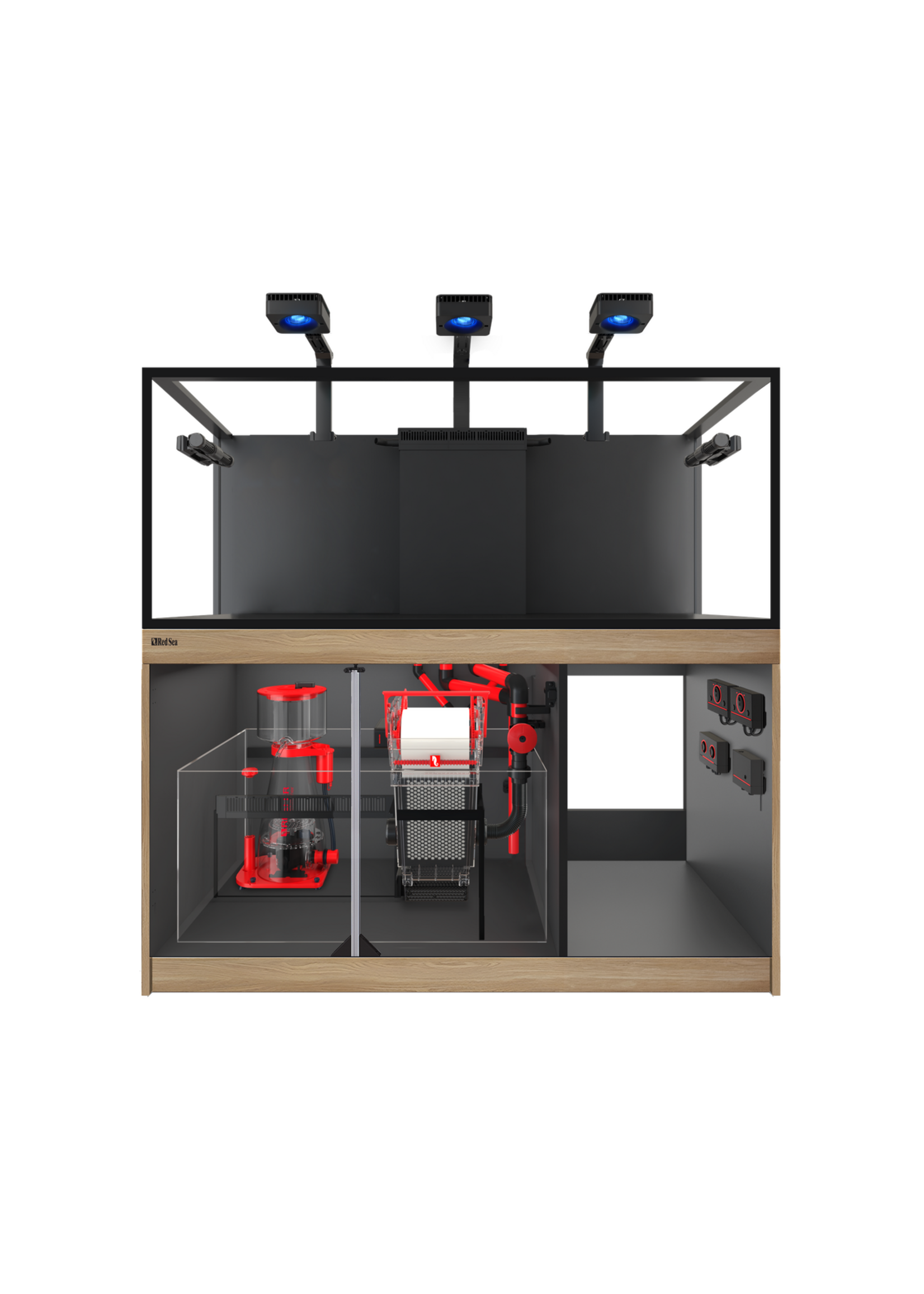

Included MAX Equipment Package

• Lighting: 3× ReefLED 115 G2 with mounting arms
• Circulation: 2× ReefWave 25 Gyre Pumps (3,960 GPH each)
• Return Pump: 1× ReefRun 8000 DC Return Pump & Controller
• Skimmer: 1× REEFER DC 600 Skimmer

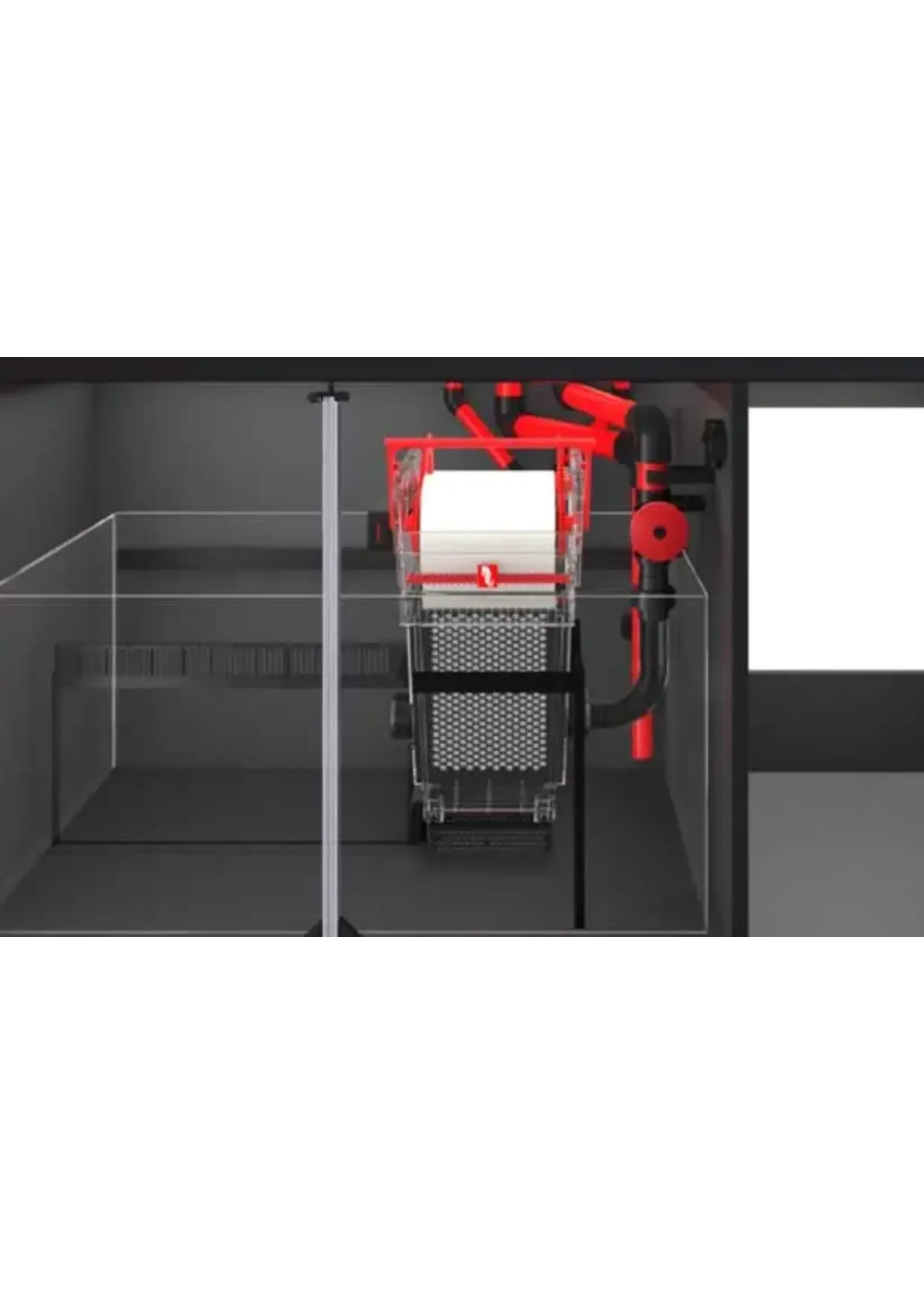

• Mechanical Filtration: 1× ReefMat 1200 Fleece Roller
• Auto Top-Off: 1× ReefATO+ 3-in-1 Auto Top-Off System

Technical Specifications

• Total System Volume: 136.3 gal (516 L)
• Display Tank Volume: 107 gal (405 L)
• Sump Volume: 29.3 gal (111 L)
• Display Dimensions (L × W × H): 59.1″ × 22.6″ × 21.6″ (150 cm × 57.5 cm × 55 cm)
• Total System Height (excl. lights): 55.9″ (142 cm)
• Glass Thickness: 15 mm (0.59″) heavy-duty glass throughout

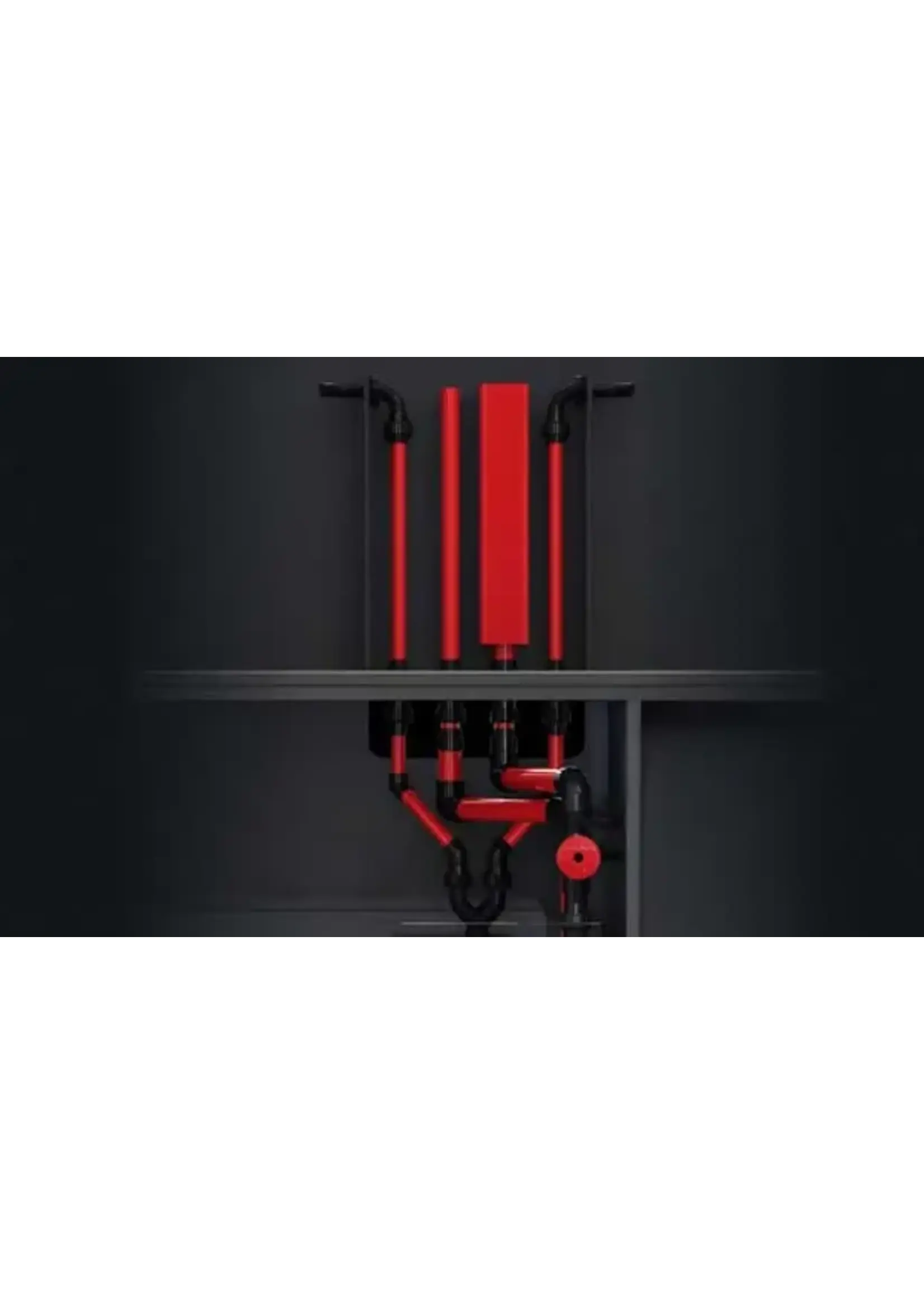

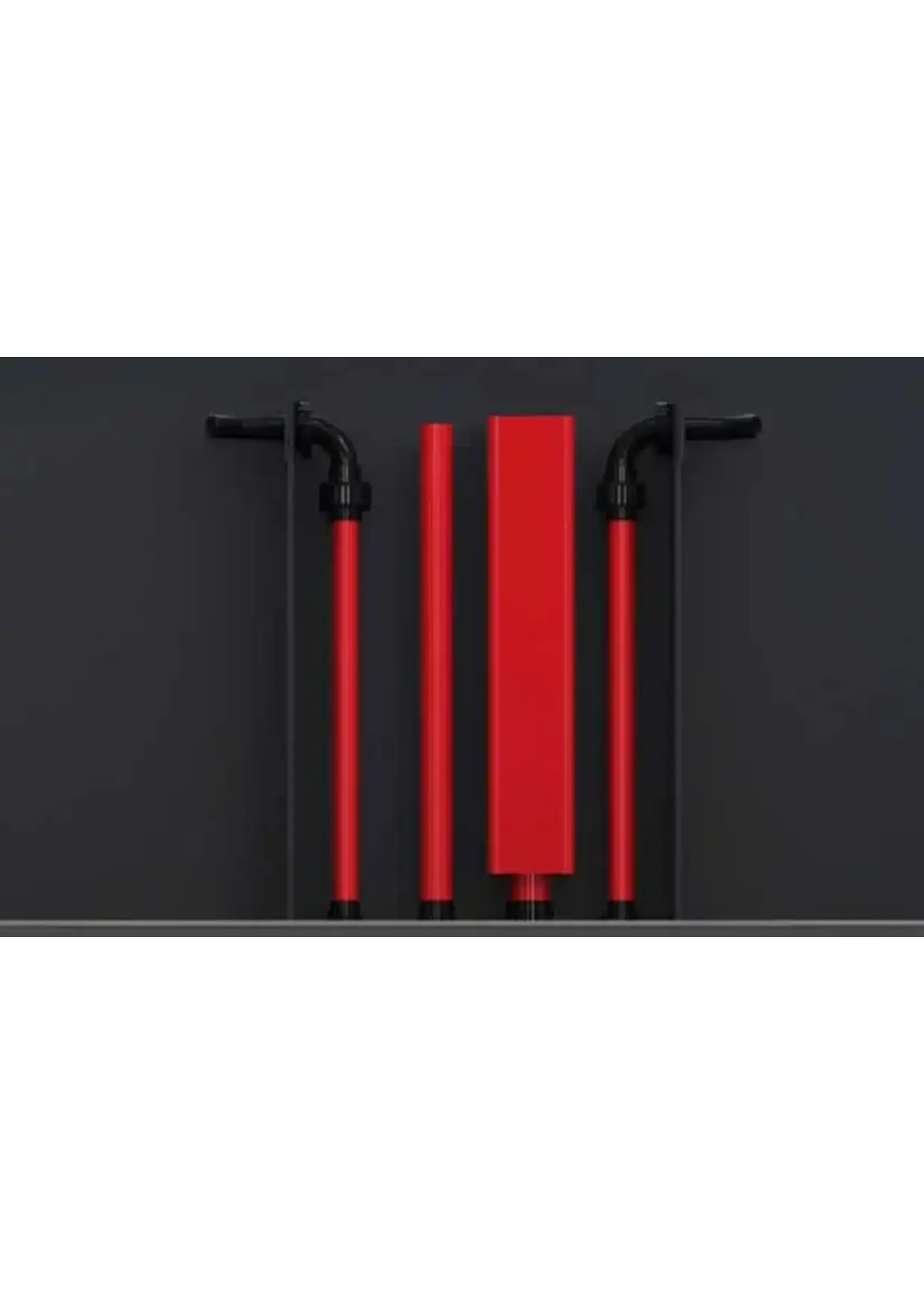

• Return Outlets: Dual 25mm curved return outlets

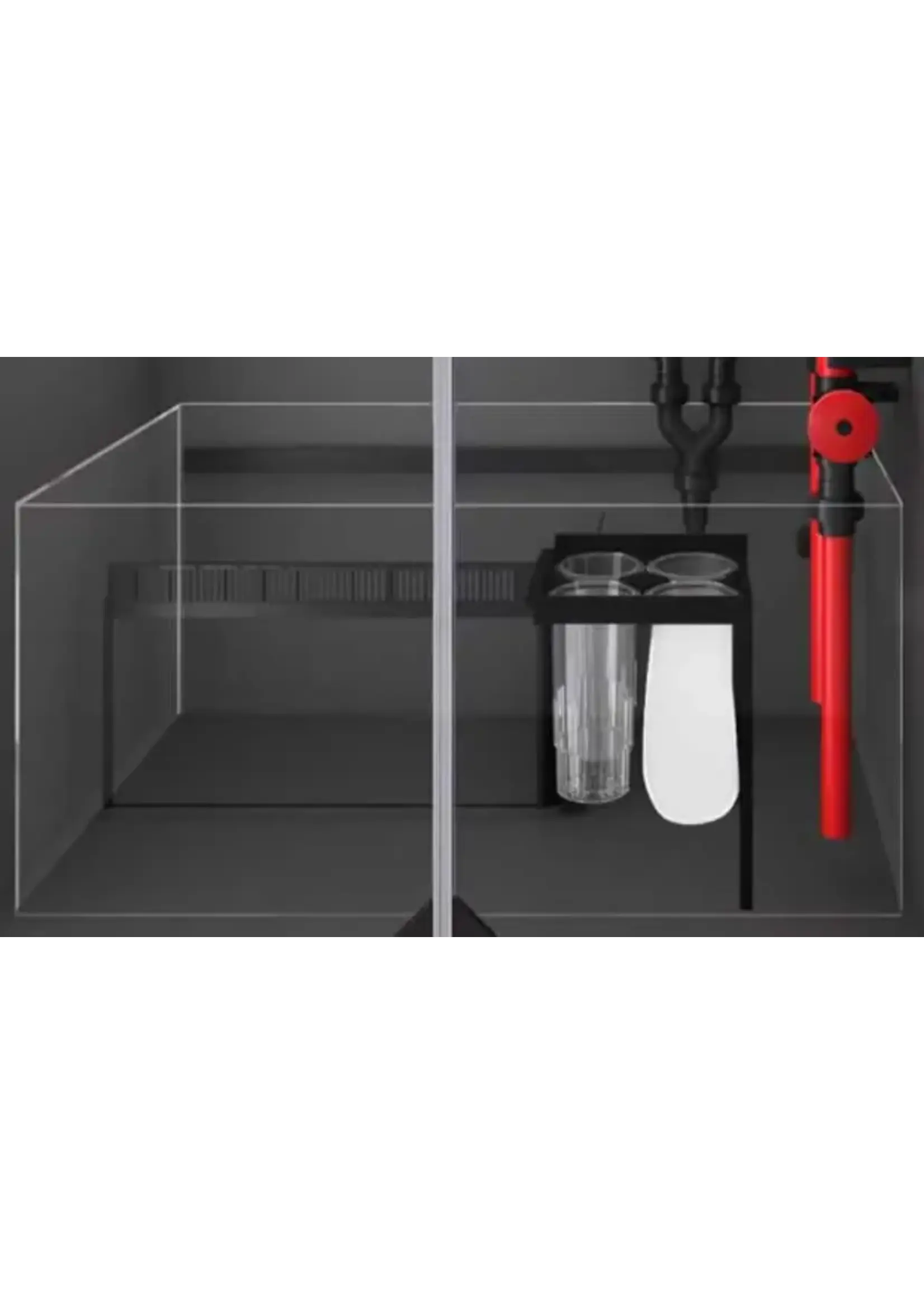

• Sump Capabilities: 29.3-gal Reef Spec sump with adjustable skimmer chamber & refugium divider
• Cabinet Finishes: Black, White, Classic Oak
