The Red Sea REEF-FRAME line blends years of hobbyist feedback with precision engineering and forward-thinking design. Built as an ultimate blank canvas, these systems feature eurobraced ultra-clear glass, hydrodynamically superior piping, high-precision flow control, and marine-spec fortified cabinets.

Available as a Standard version for full equipment customization, or a MAX version equipped with a full ecosystem of ReefBeat smart devices, REEF-FRAME provides a rock-solid, quiet foundation so you can build a stunning, long-lasting aquatic masterpiece.

Core System Features & Innovations

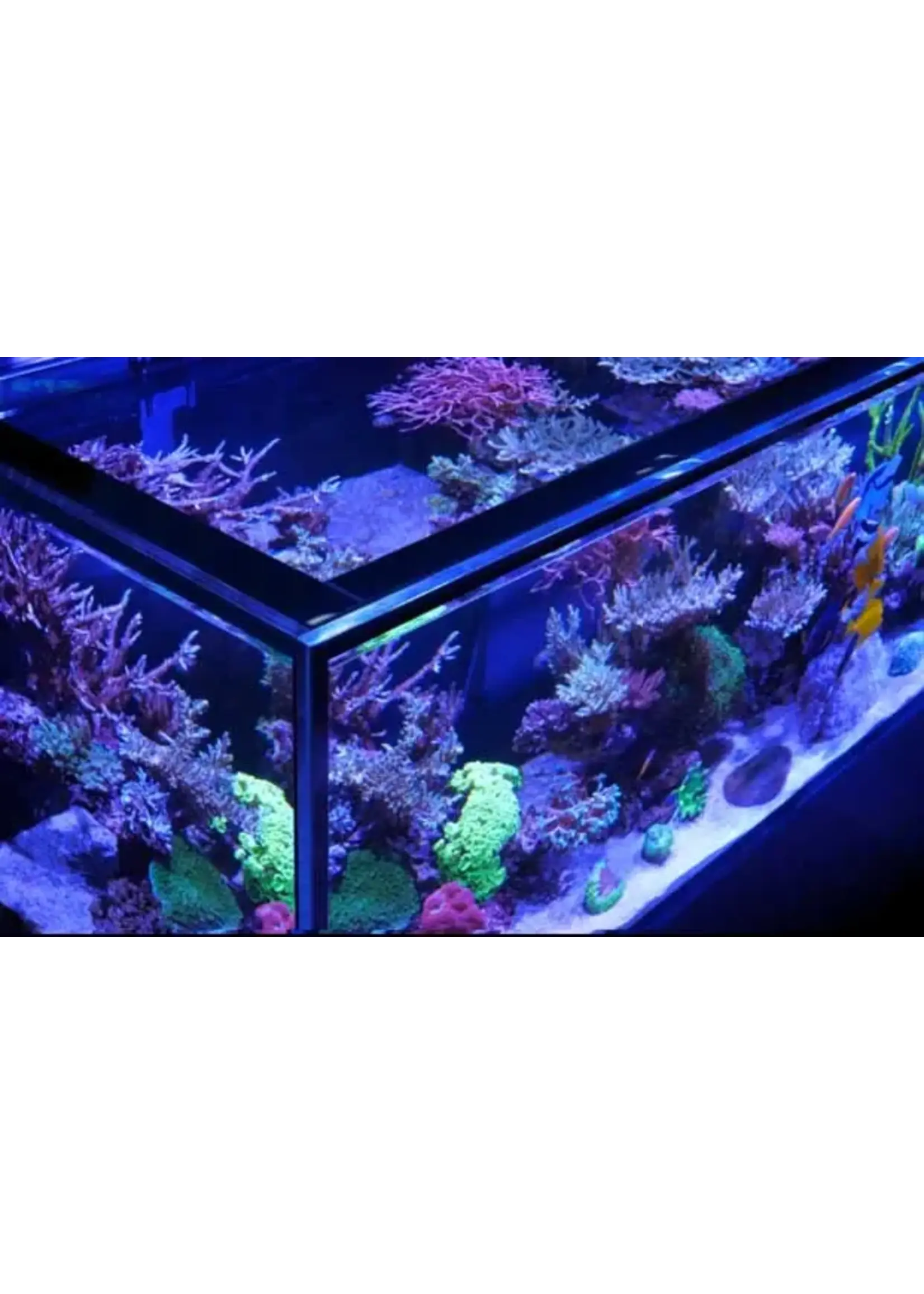

• Eurobraced Ultra-Clear Glass: Engineered with glass thickness up to 15 mm (0.59”), high-grade eurobracing for superior structural integrity, and bonded with high-performance euro-silicone.
• Extra-Fortified Cabinets: Built from marine-spec laminated plywood to support the full contour of the display tank. Includes stainless steel hinges, leveling feet, and cabinet finishes in Black, White, or Classic Oak.
• High-Precision ReefGate Valve: A bespoke, heavy-duty gate valve installed on the downflow pipe that allows micro-adjustments for near-silent overflow operation.

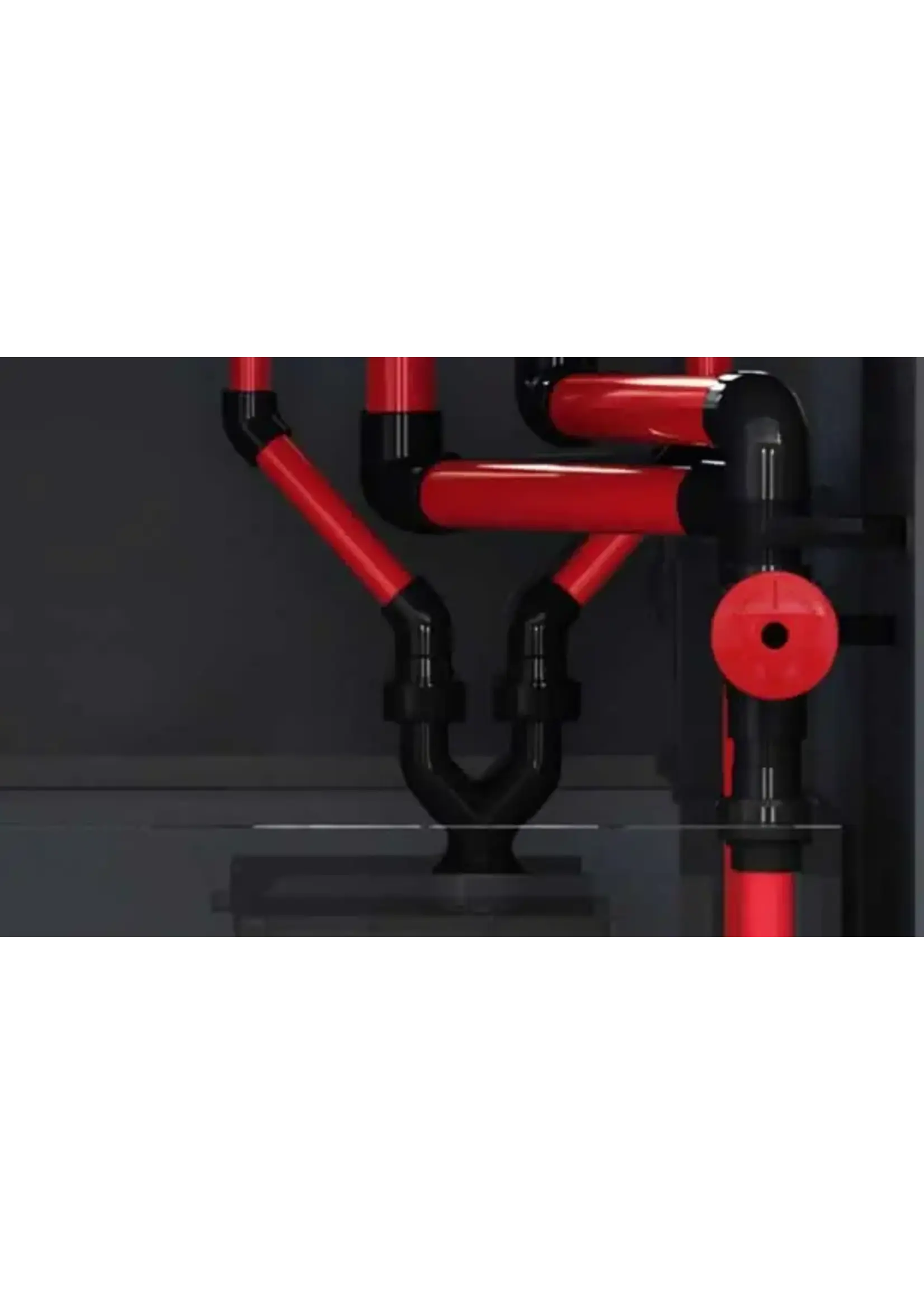

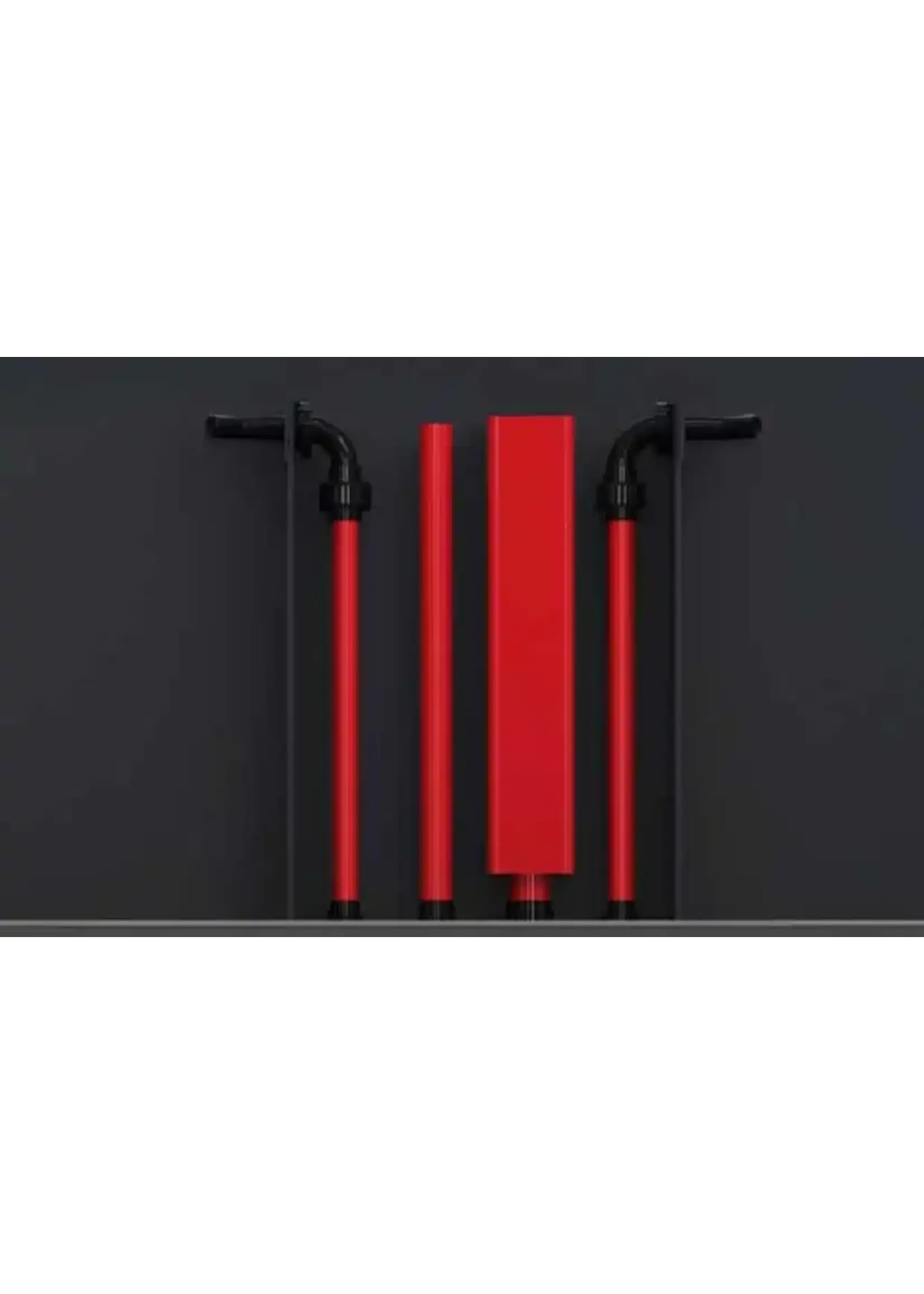

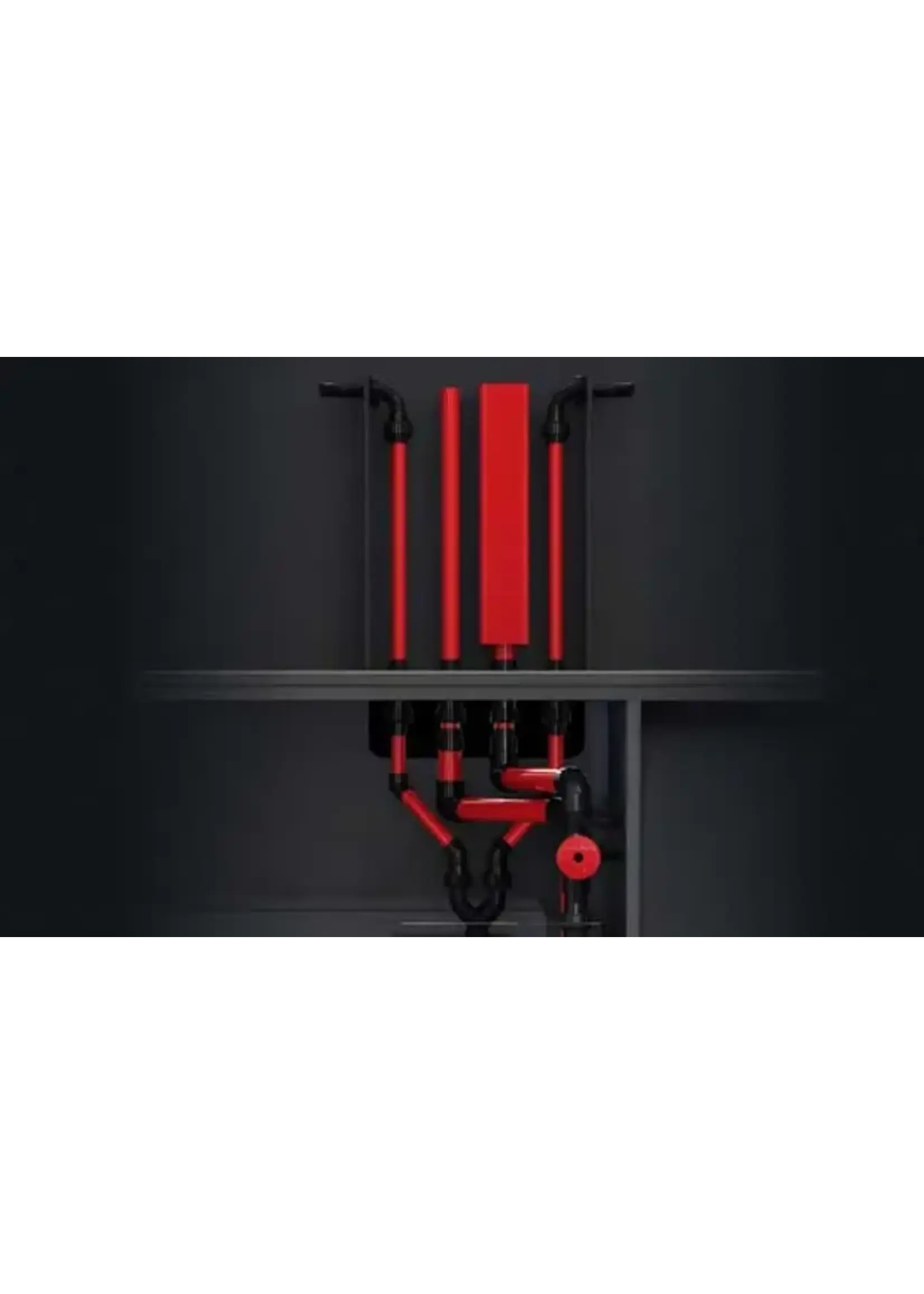

• Hydrodynamically Superior Piping: Enlarged rectangular-profile downflow pipes maximize circulation and eliminate noise. Includes optional connector kits for both Metric and USA standard pipe customization.

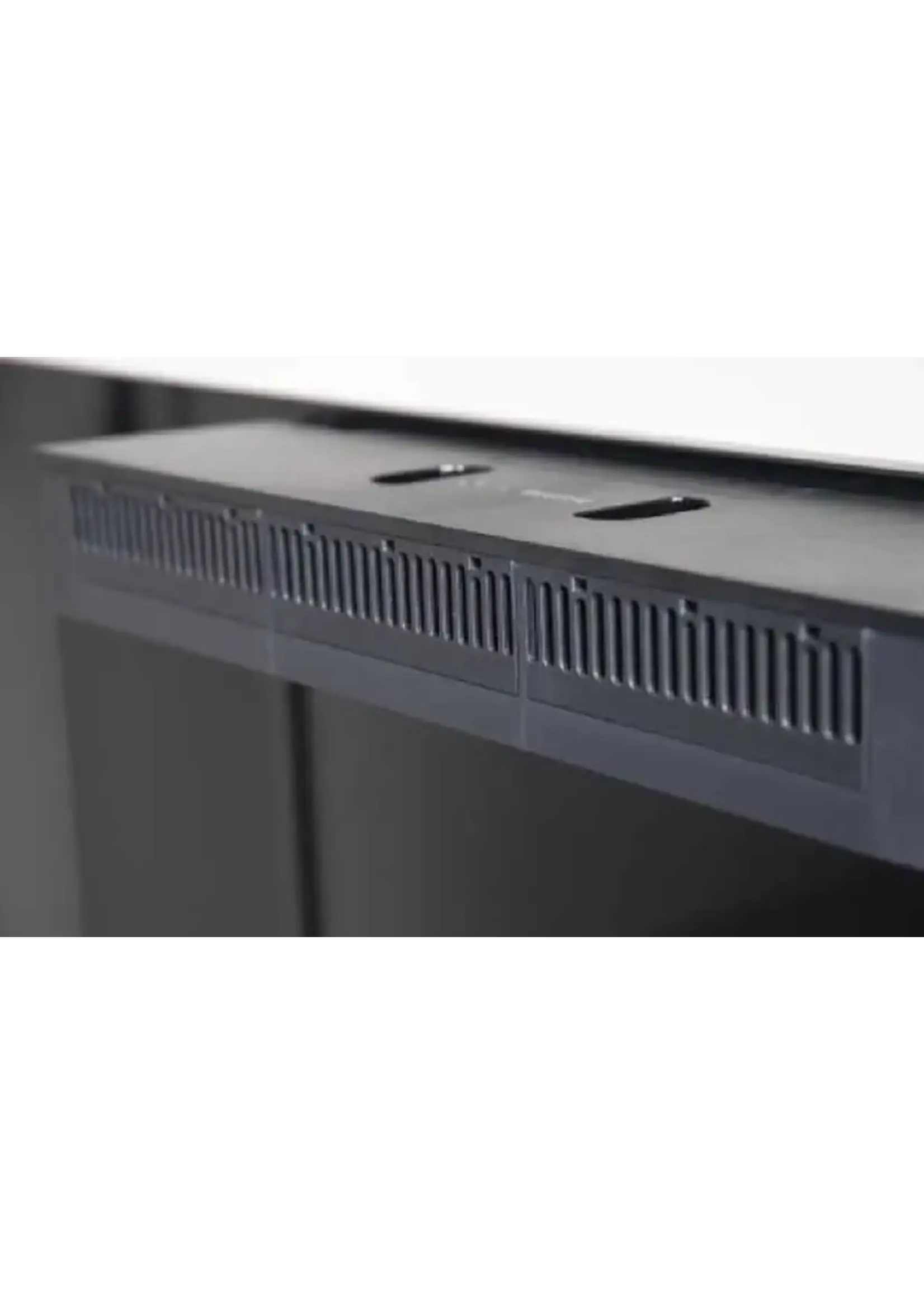

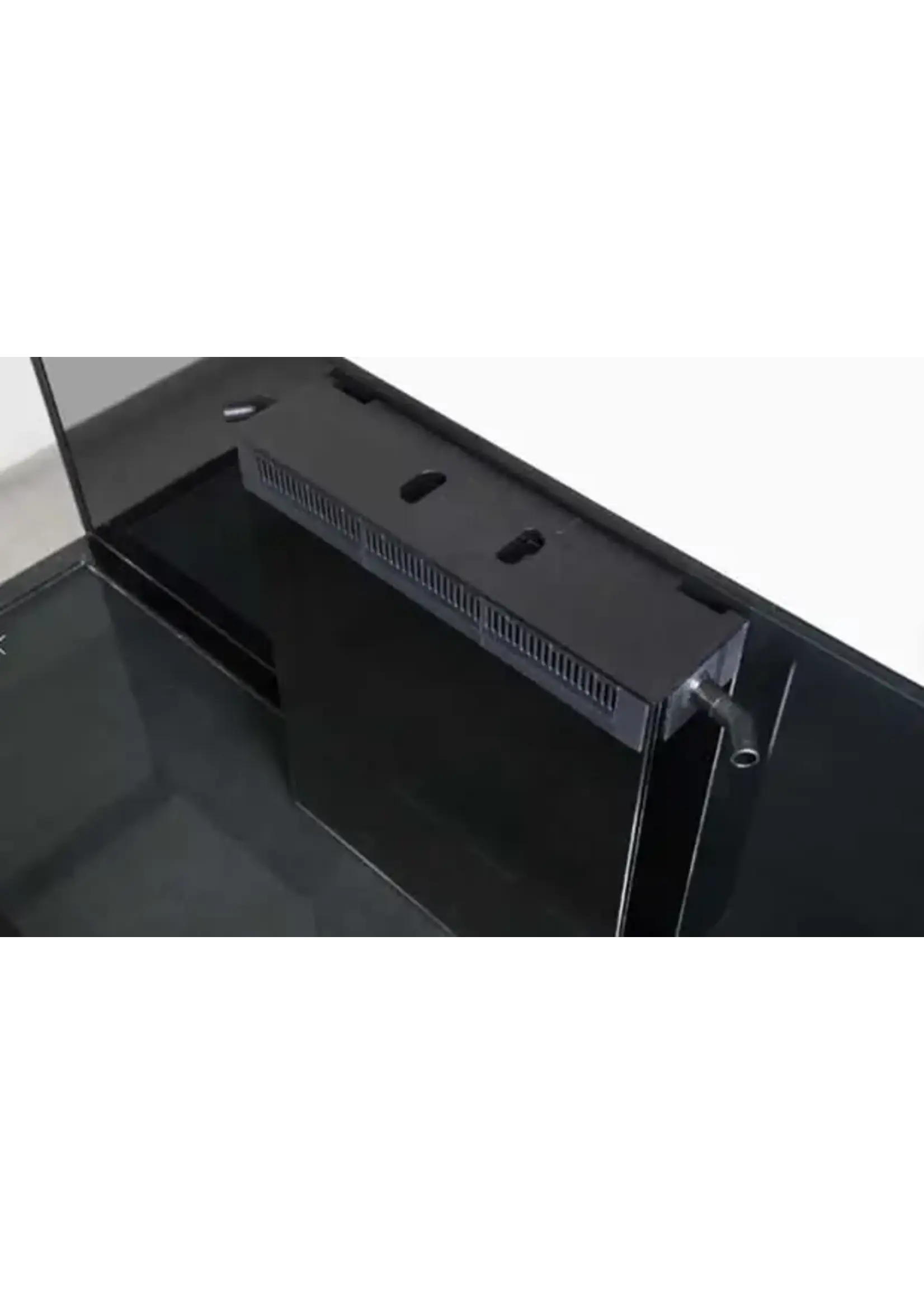

• Central Overflow & Surface Skimmer: Conceals all return and drain plumbing within a sleek overflow box featuring removable surface skimming combs for quick maintenance.

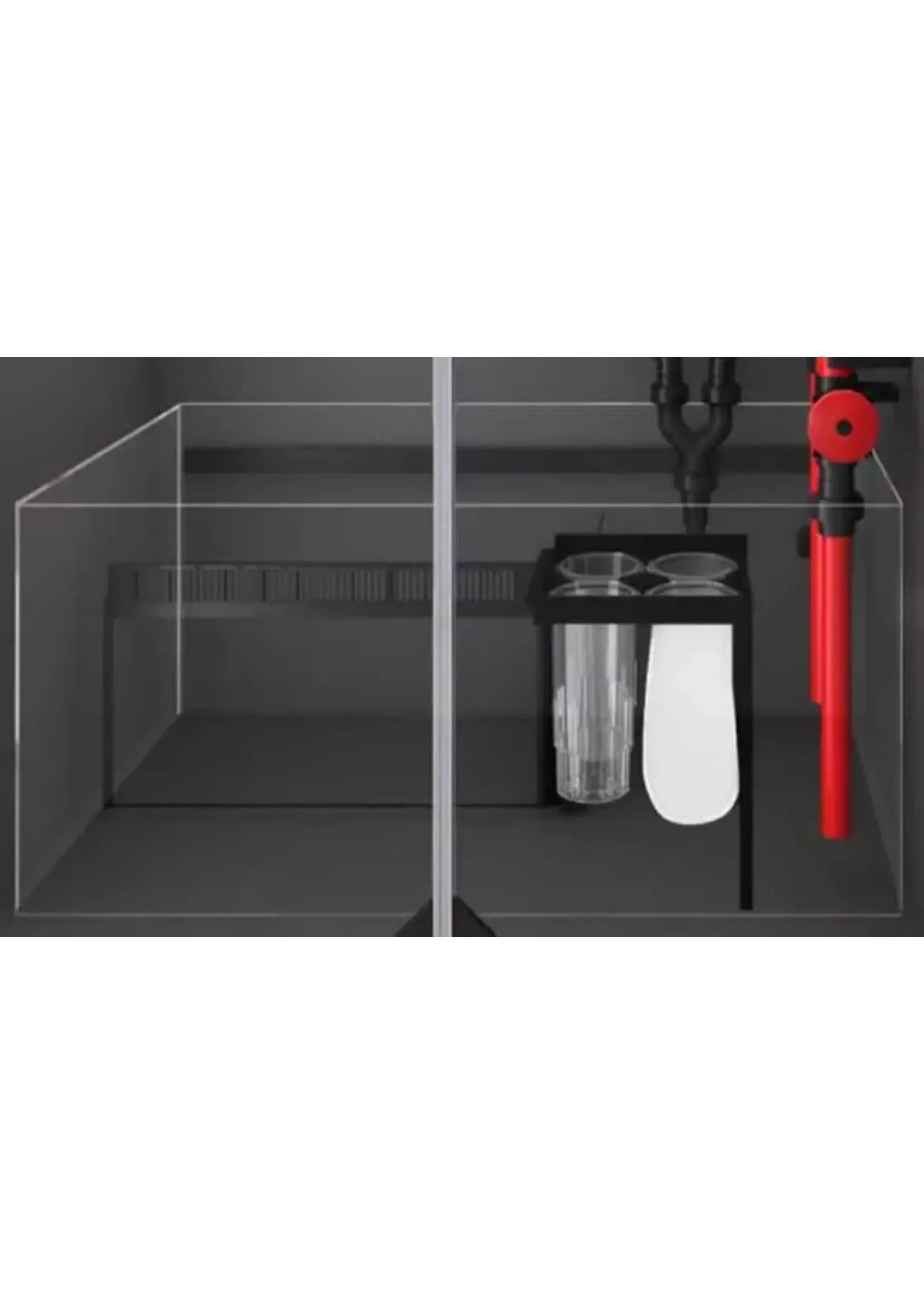

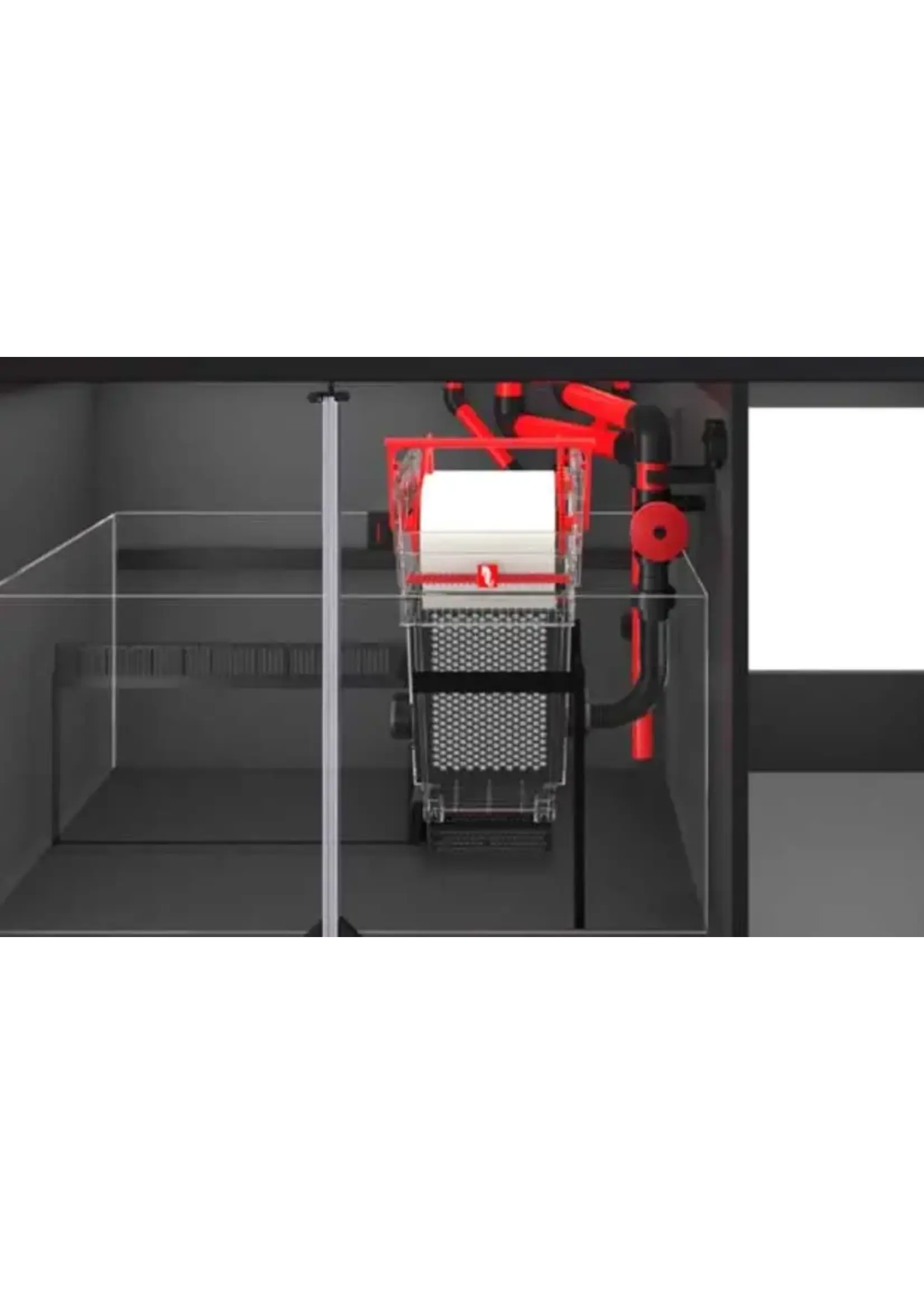

• High-Performance REEF SPEC Sump: Includes a dedicated skimmer chamber with adjustable water height, a built-in bubble trap to prevent microbubbles in the display, and a plug-and-play ReefMat-ready mechanical filtration bay (fits ReefMat 250/500/1200, filter socks, and media cups).

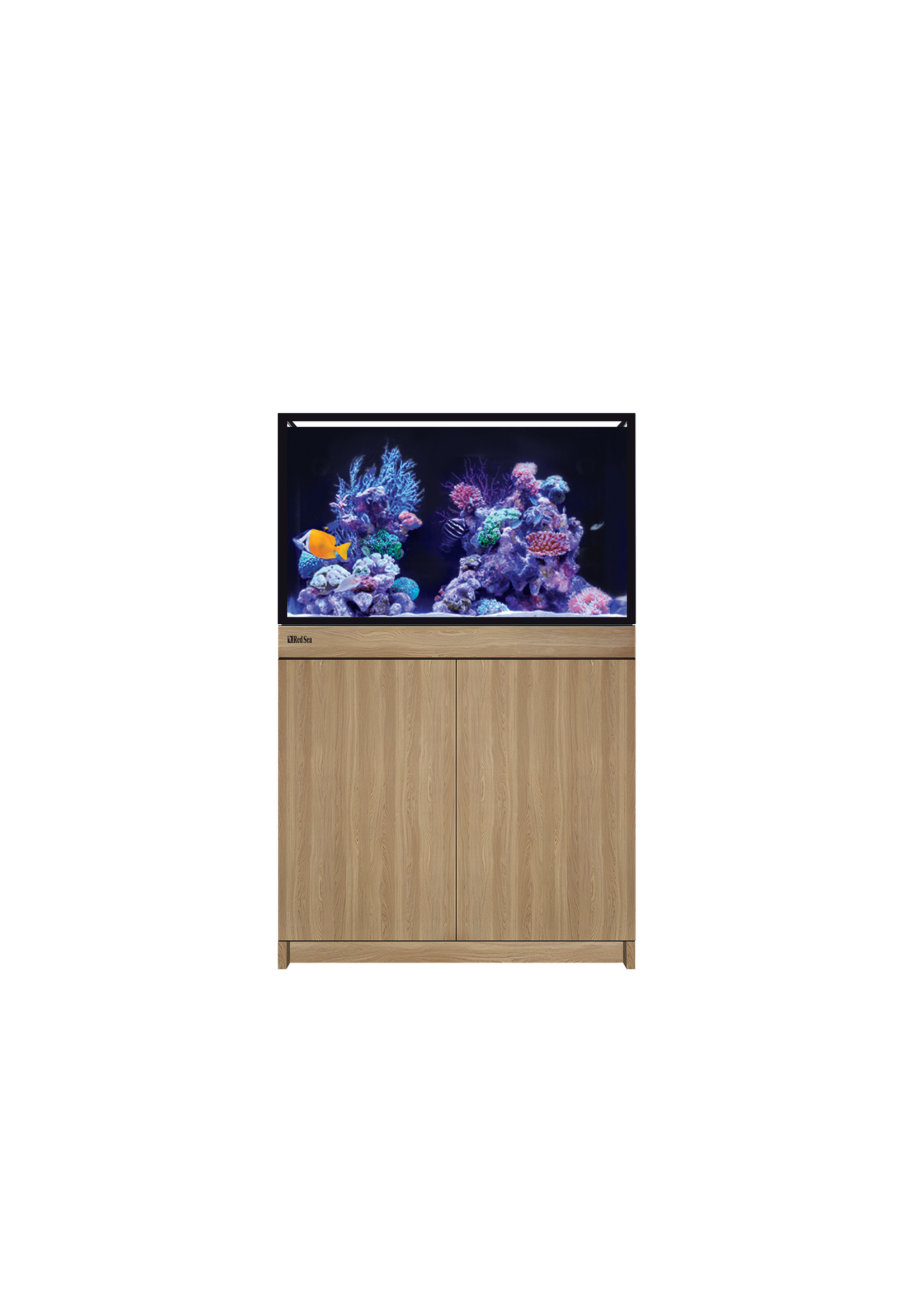

Red Sea REEF-FRAME 250 (65 Gal / 246 L System)

Overview

Offering a versatile 3-foot display profile, the Red Sea REEF-FRAME 250 strikes a balance between aquascaping depth and manageable footprint. With 53.9 gallons of display volume and uniform 12 mm glass panels, it provides a stable environment for fish, soft corals, LPS, and SPS setups.

Key Highlights

• Refugium-Ready Sump: Features an optional sump divider, allowing you to create a dedicated refugium chamber to manage nutrients naturally.
• Adjustable Skimmer Chamber: Fine-tune your protein skimmer's performance with a built-in adjustable water-height baffle.
• Eurobraced Design: Added structural strength along the perimeter glass ensures peace of mind over years of use.

Technical Specifications

• Total System Volume: 65 gal (246 L)
• Display Tank Volume: 53.9 gal (204 L)
• Sump Volume: 11 gal (42 L)
• Display Dimensions (L × W × H): 35.4″ × 20.1″ × 20.9″ (90 cm × 51 cm × 53 cm)
• Total System Height: 53.9″ (137 cm)
• Glass Thickness: 12 mm (0.47″) ultra-clear glass on all panels
• Pump Return Outlets: 1x 25mm curved outlet
• Filtration: Removable sock/media tray; fully compatible with ReefMat 250/500
